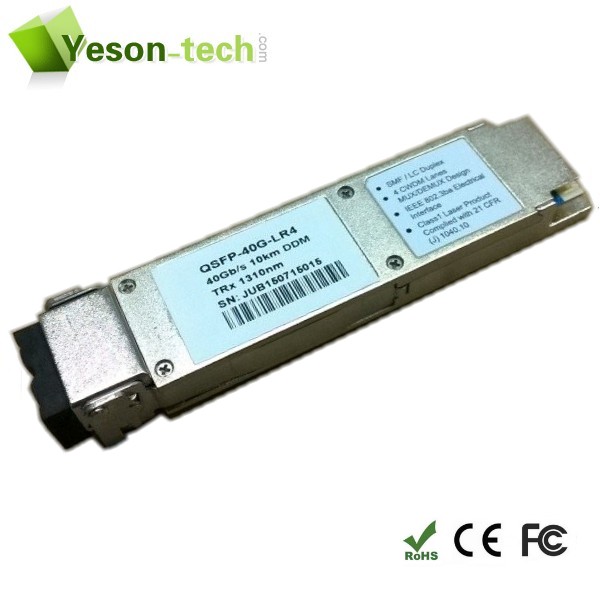

Optical Transceiver 40G QSFP LR4 1310nm Module

Optical Transceiver 10km 40Gb QSFP+ LR4 module
QSFP LR is designed to operate over single-mode fiber system using 4X10 CWDM channel in 1310nm band and links up to 10km. The module converts 4 inputs channel of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.

Features:

1.4 Independent full-duplex channels
2.Up to 11.2Gbps per channel bandwidth
3.Aggregate bandwidth of > 40Gbps
4.QSFP MSA compliant
5.Duplex LC Connector
6.Up to 10 km transmission
7.CML compatible electrical I/O
8.Single +3.3V power supply operating
9.IEEE 802.3ba Electrical Interface
10.Built-in digital diagnostic functions
11.Temperature range 0°C to 70°C
12.RoHS Compliant Part
Applications:

1.Data centers Interconnect
2.40G Ethernet
3.Switches and Routers
4.Infiniband QDR

Standard:
Compliant to IEEE 802.3ba
Compliant to SFF 8436
RoHS CE Compliant

Compatible:

Our products are compatible withCisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.
